Track bolts, also called fang bolts or rail anchor bolts, are used to fix steel rails and rail chairs to rail ties, or to fasten rail joints to link rails. The track bolt is a bolt inserted through a hole in rail tie with a fanged nut that embeds into the lower surface of the tie. In general, the size of track bolts varies from requirements of the rail sections. The proper diameter and length of the track bolt can be determined by checking the applicable railway standards.

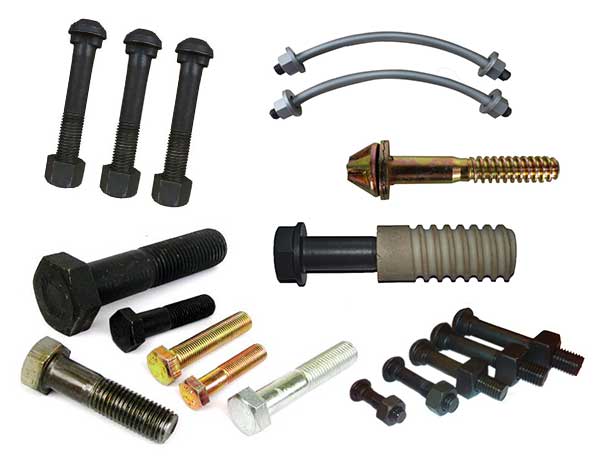

Track bolts can be divided into several types, such as, button head oval neck track bolt, diamond neck track bolt, rail bolt NF F50-008, fish bolt, Russian standard track bolts, clip bolt, clamp bolt and inserted bolt for Russia, , anchor bolt, T-bolt clamp and other special bolts, etc. For fastening flat-bottomed rails, an upper-lipped washer can be used to grip the edge of the rail. They are more resistant to loosening by vibrations and movement of steel rails. In actual use, they are more effective than track spikes and screws and so are used in positions such as switch (point) tie plates and on sharp curves.

Types of track bolts

Parameters of track bolts are presented as follows

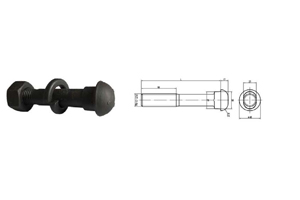

Button head oval neck track bolt		Material: Carbon steel Grade: 8.8 10.9 Size: Dia. M5-M42 Surface: zinc plated Types: BS standard, R54 rail in Indonesia,AS1085.4-1999, Russian standard, AREMA standard, etc.
Diamond neck track bolt		Material: Q235, 35#, 45# Grade: 4.6, 5.6, 8.8 10.9 Standard: UIS864-2 Surface: plain (oiled), Oxide black, Zinc, HDG, wax, bitumen, Dacromet, Sherardizing
Clip bolt with BSW thread		Material: Q235, 35#, 45#, 40Cr Grade: 4.6, 5.6, 8.8, 10.9 Certificate:ISO9001:2008

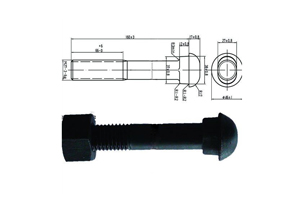

Fish bolt used for rail joints (with railnuts and spring washers)		Material: Q235, 35#, 45#,, 40Cr , C45 Grade: 4.8, 8.8, 10.9 Size: 22×135, 24×135, 24×145 Surface: plain (oiled), Oxide black, Zinc, HDG Types: BS standard, R54 rail in Indonesia, AS1085.4-1999, Russian standard, AREMA standard, etc.

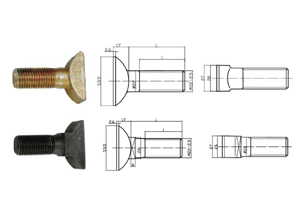

Clip bolt HS26 & HS32		This type of bolt is used to connect base plates and rail clamps together with nuts and washers. Two types of clip bolts are available: with square neck or without neck. Standard: UIS864-2 Material: Q235, 35#, 45# Grade: 4.6, 5.6, 8.8 Standard: UIC, GB, BS, DIN and GOST or ISO, etc. Surface: Plain, black painting or upon customer requirement For rail types: M20 X 60 30Kg rail, M20 X 75 30Kg rail, M22 X 66 40Kg rail, M22 X 80 48Kg rail, etc.
