Rail shoulders are cast in the concrete railway sleepers to fix elastic rail clips and steel rail. According to different production processes, rail shoulders can be divided into cast-in rail shoulder and weld-on shoulder, and both of the two types of rail shoulders have the function of fixing elastic rail clips and protecting the rail clips from being stolen. As a professional manufacturer and supplier of rail fastenings.

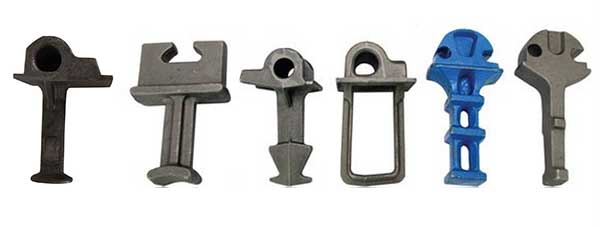

Cast-in shoulder
As the embedded part of rail fastening system, the casting shoulders are pressed in concrete rail sleeper and assembled with E clip in order to fasten the rail track. The raw material we use to produce cast-in shoulder is cast iron, such as GB/T 1348-1988, NF EN 1563(1997), ISO1038, DIN 1693, JIS G5502 (2001), KS D 4302, GOST 7293(1985) or BS EN 1563(1997). The mechanical property and chemical composition of the rail cast iron shoulder are shown below:
| Product | Rail shoulder | ||
|---|---|---|---|
| Application | UIC54 | UIC60 | 115RE, ,50kg rail, 60kg rail,BS80lbs, BS100lbs, ect. |
| Material | |||
| Name | QT500-7 | QT450-10 | QT400-15 |
| Standard | GB 1348-88 | GB 1348-88 | GB 1348-89 |
| Chemical composition(%) | C:3.60-3.80 | C:3.40-3.90 | C:3.50-3.60 |
| C:3.60-3.80 | Mn:0.2-0.5 | Mn:≤0.5 | |
| Si:2.50-2.90 | Si:2.70-3.00 | Si:3.0-3.2 | |
| P:≤0.08 | P:≤0.07 | P:≤0.07 | |
| S:≤0.025 | S:≤0.03 | S:≤0.02 | |
| Tensile Strength | ≥500 Mpa | ≥450 Mpa | ≥400 Mpa |
| Yield Strength | ≥320 Mpa | ≥310 Mpa | ≥250 Mpa |
| Elongation(%) | ≥7 | ≥10 | ≥15 |
| Hardness | 170~230HB | 160~210HB | 130~180HB |
| Metallographic organization | ferrite + pearlite | graphite + ferrite + pearlite | ferrite |
| Surface | plain (oiled) | ||
