Fish Bolt

产品介绍：

产品详情

Railway fish bolts are used in railway system for rail joint connection. As a professional rail fastener manufacturer, AKR Rail can manufacture and supply a range of fish bolts according to various standards, such as BS, GB, ASTM, AREMA, and DIN etc.

AGICO Rail fish bolt description

Name: Fish bolt
Standards: GB, DIN, ISO, ANSI/ASTM, B7, BS, JIS etc
Grade: 4.8, 6.8, 8.8, 10.9, 12.9
Material: Q235, 45#, 40Cr, 20Mntib, stainless steel, etc
Size: M12-M24 or upon customer request
Length: 45mm-145mm or upon customer request
Surface: Plain, black, zinc-plated, or according to customers' requirement

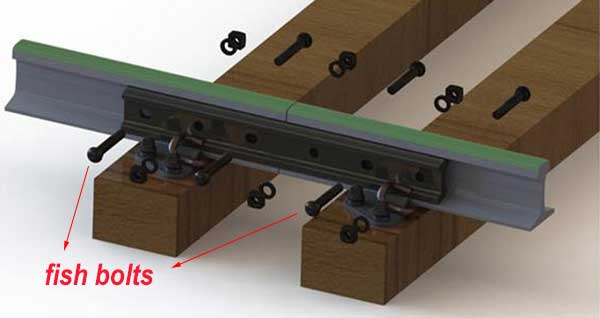

Usage: It is used to fix the rail fish plates onto rails.
Non-standard OEM is available if the buyer provides a drawing or sample.
Samples: samples are free.

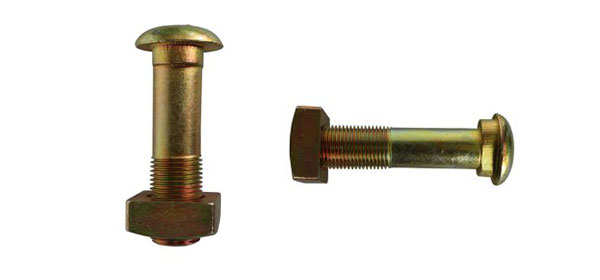

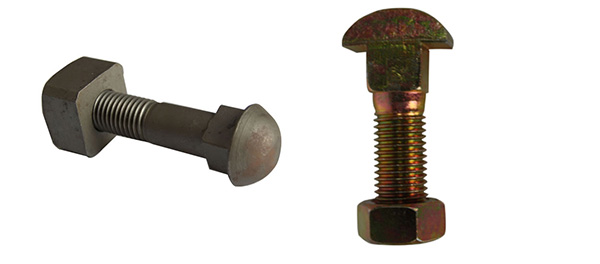

Railway Fish Bolt
Grade	4.6	5.6	8.8	10.9
Material	Q235	35#	45#	40Cr
Mechanical properties	Tensile strength: ≥400Mpa	Tensile strength: ≥500Mpa	Tensile strength:≥800Mpa	Tensile strength: ≥1000Mpa
	Yield strength:≥240Mpa	Yield strength:≥300Mpa	Yield strength:≥640Mpa	Yield strength:≥900Mpa
	Elongation:≥22%	Elongation:≥20%	Elongation:≥12%	Elongation:≥9%
	Cold bending: 90 degree without crac	Cold bending: 90 degree without crac	Cold bending: 90 degree without crac	Cold bending: 90 degree without crac
Surface	plain (oiled), Oxide black, Zinc, HDG, wax, bitumen, Dacromet, Sherardizing
Standard refers	UIC864-2

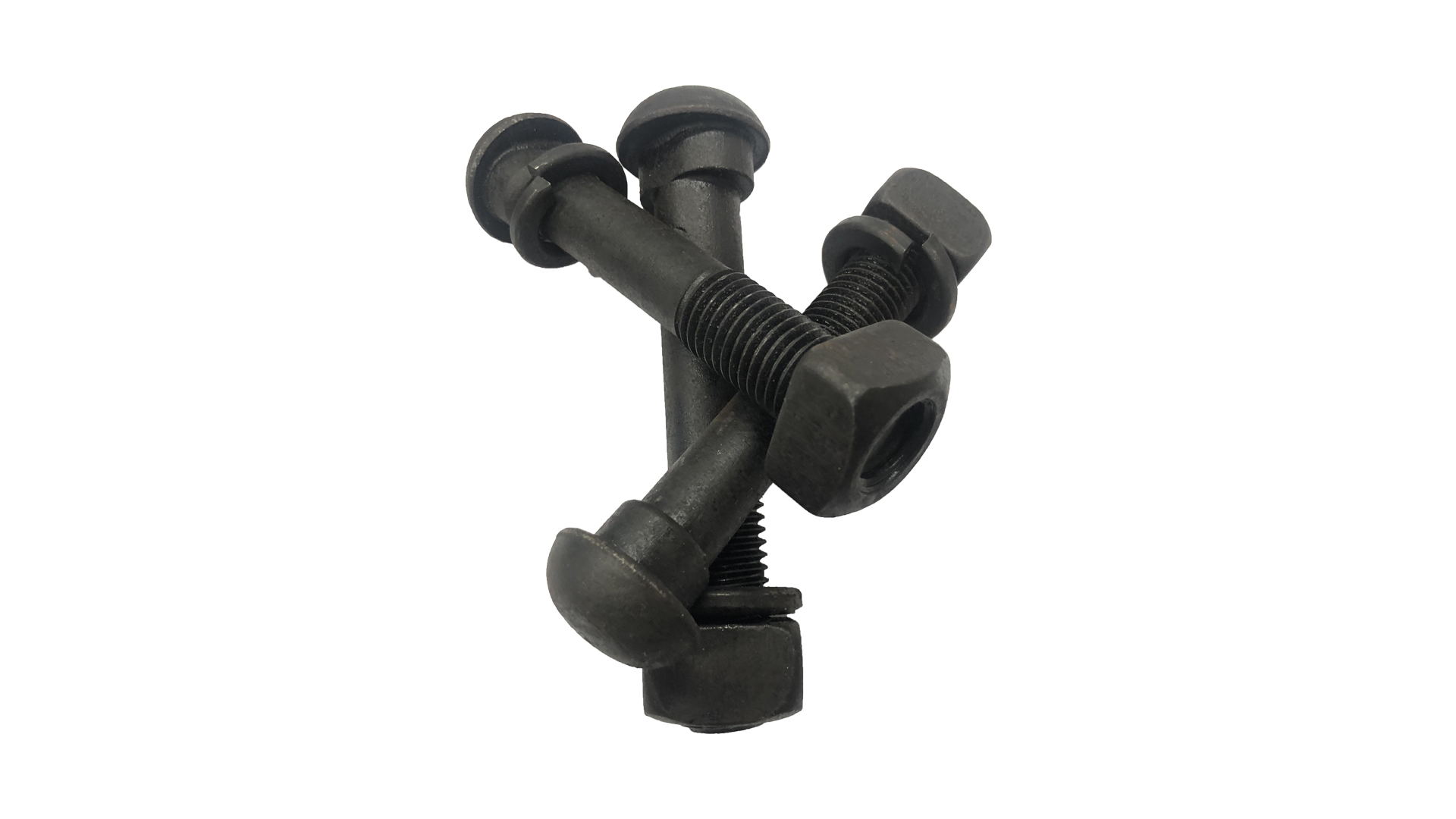

Button Head Oval Neck Fish Bolt

Parameters of Button Head Oval Neck Fish Bolts:

Diameter	Length	Weight (Kg)
1/2"	1-3/4"	0.097
1/2"	2"	0.10
1/2"	2-1/4	0.112
5/8	2-1/2	0.183
3/4	3	0.328
3/4	3-1/2	0.339
3/4	4	0.356
7/8	4-1/2	0.559
7/8	5	0.593
1	5	0.8
1	5-1/2	0.839
1	6	0.879
1-1/16	6	0.995
1-1/8	6-1/2	1.186
